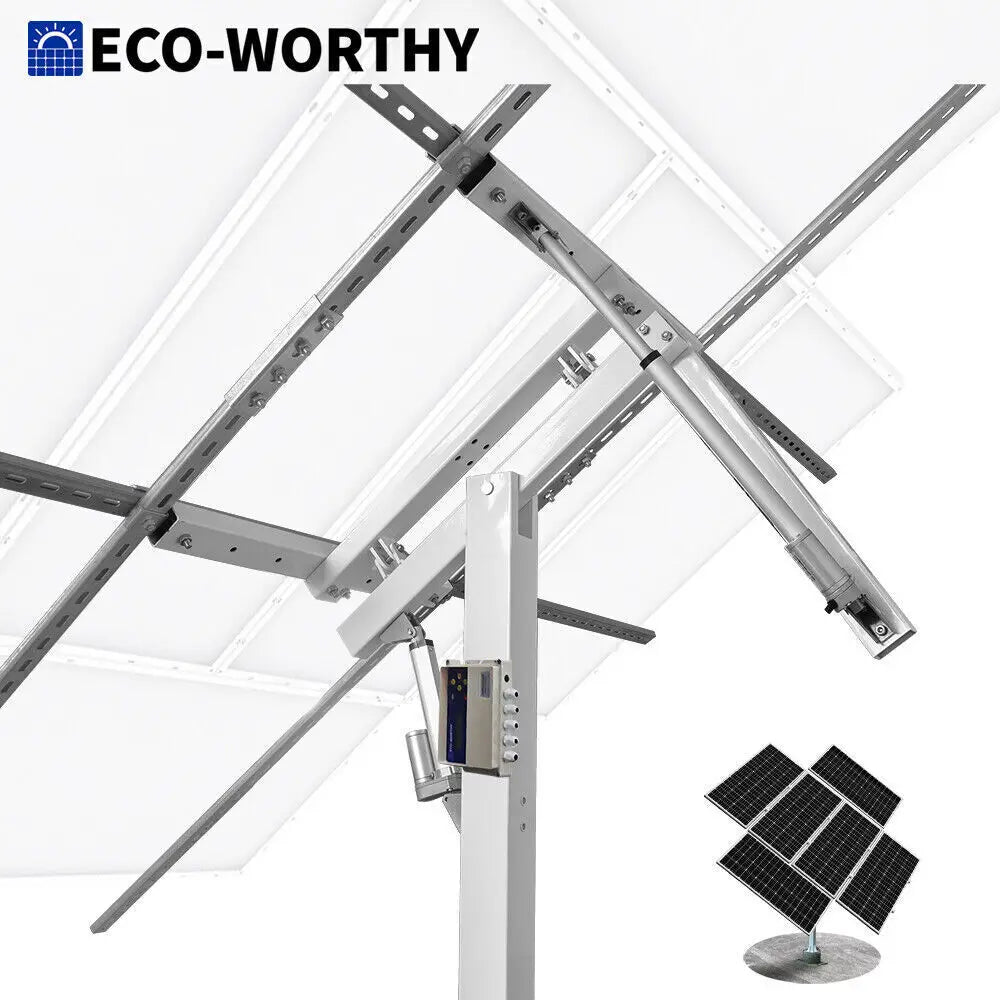

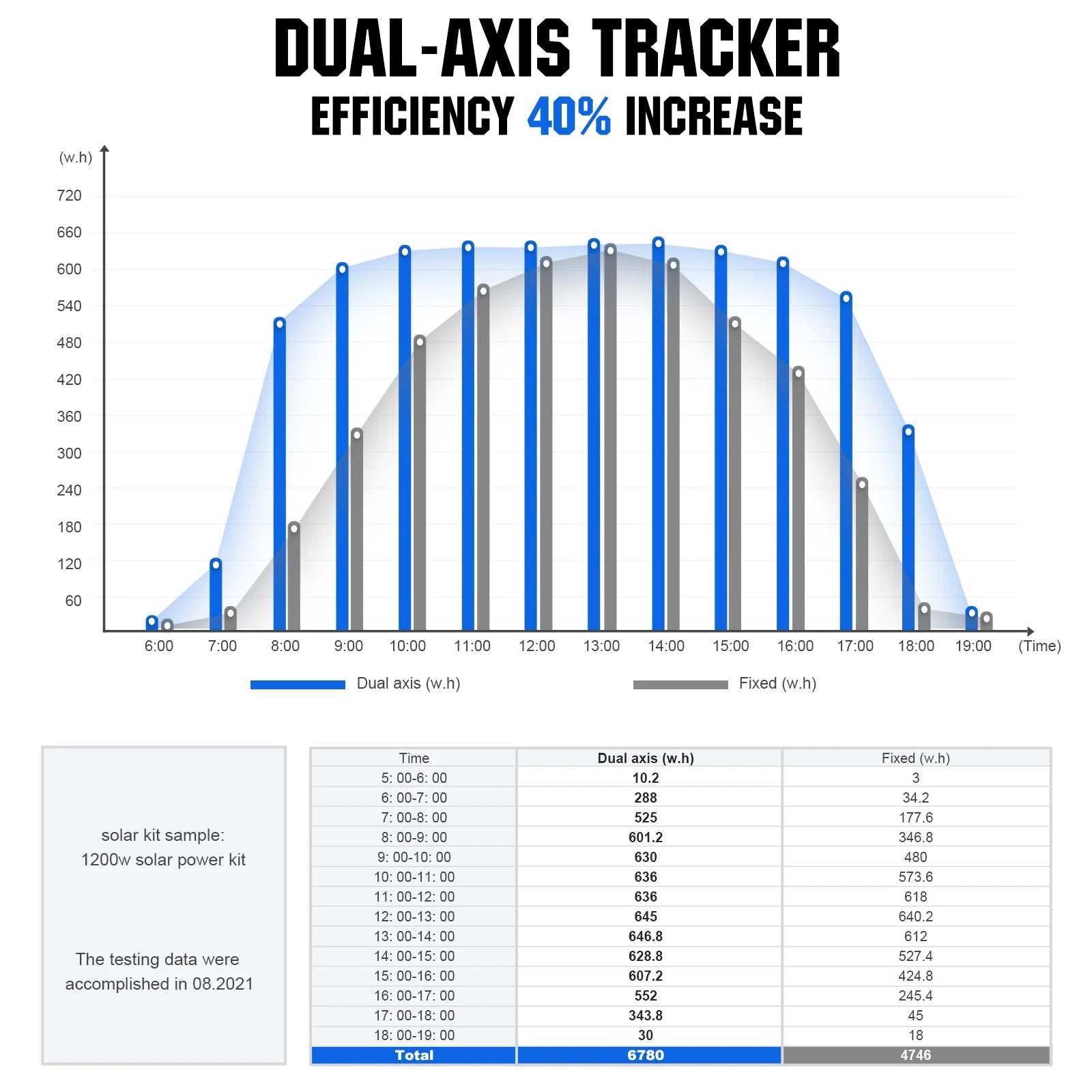

Dual-axis solar tracker make the mounted panels turn face to sunlight any daytime. Compared to fixed solar panels, the PV power generation can increase at least 40% with the tracker.

[270°Rotation]

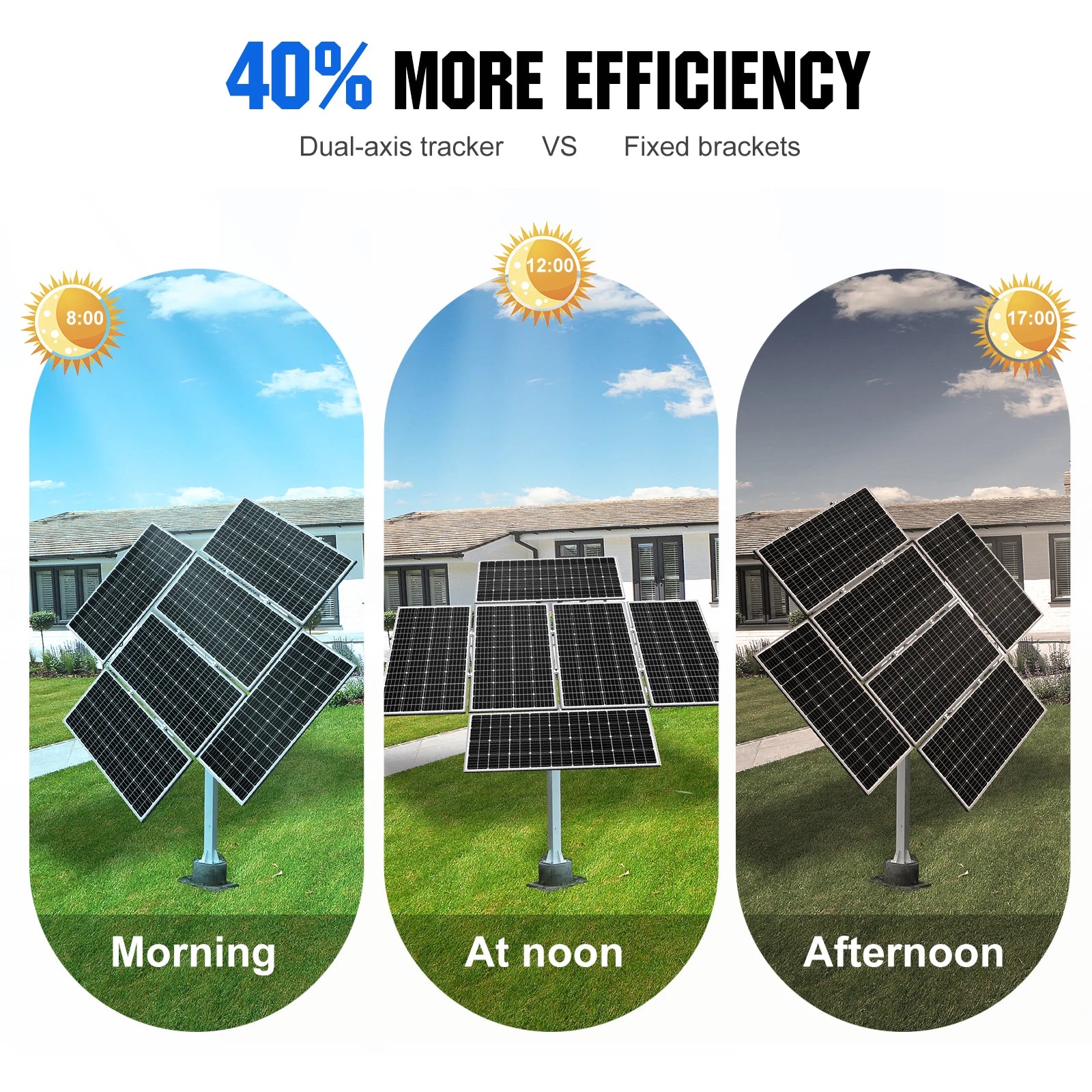

With 2 axis driving and sensitive sunshine sensor, the solar tracker can rotate for 270°, and make the panels to absorb the sun irradiance from north, south, west and east sides.

[Steady in wind]

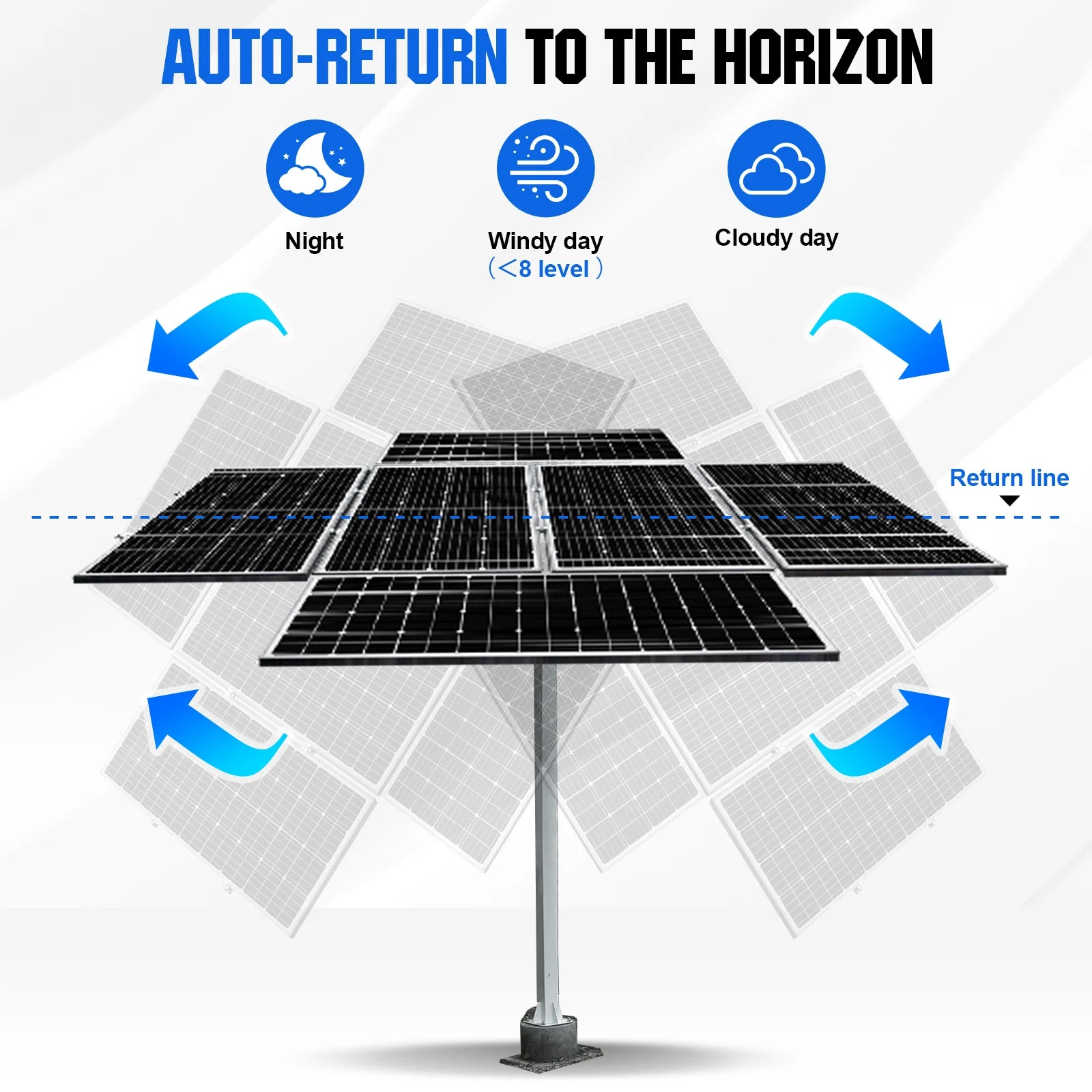

There is a air speed sensor for windy days, when it detects heavy wind (data can be set manually), the solar tracker will auto reset the angle to horizon for keeping steady. Also, by drilling the expanding screws to ground, the base can firmly stand in hurricane or storm without problem.

[For different panels]

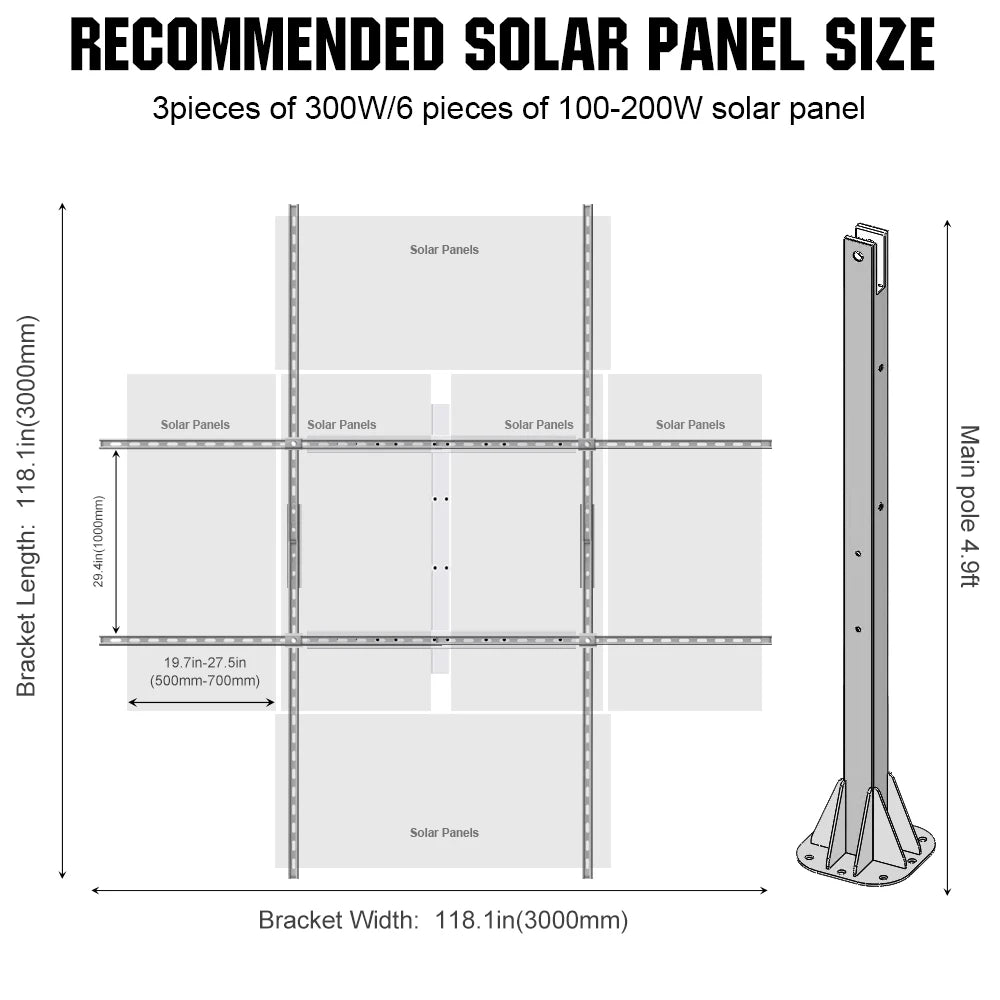

Designed space for 6 pcs 195w ECO-WORTHY panels. For different panels, please calculate according to the length information provided. The cross rod length: 114.2in(2900mm) width:29.4in(1000mm) Vertical rod length(each side): 45.6in(1160mm) width:30.3in(770mm). With 1500N driving rods.

[For yard/farm/field]

Only require for 114.2in * 114.2in ground space, 3.93ft height. It can be easily mounted in yard, farm, field and flat roof.

Note：If you have any questions about this, please contact our customer service, who will send the instructions to your email.

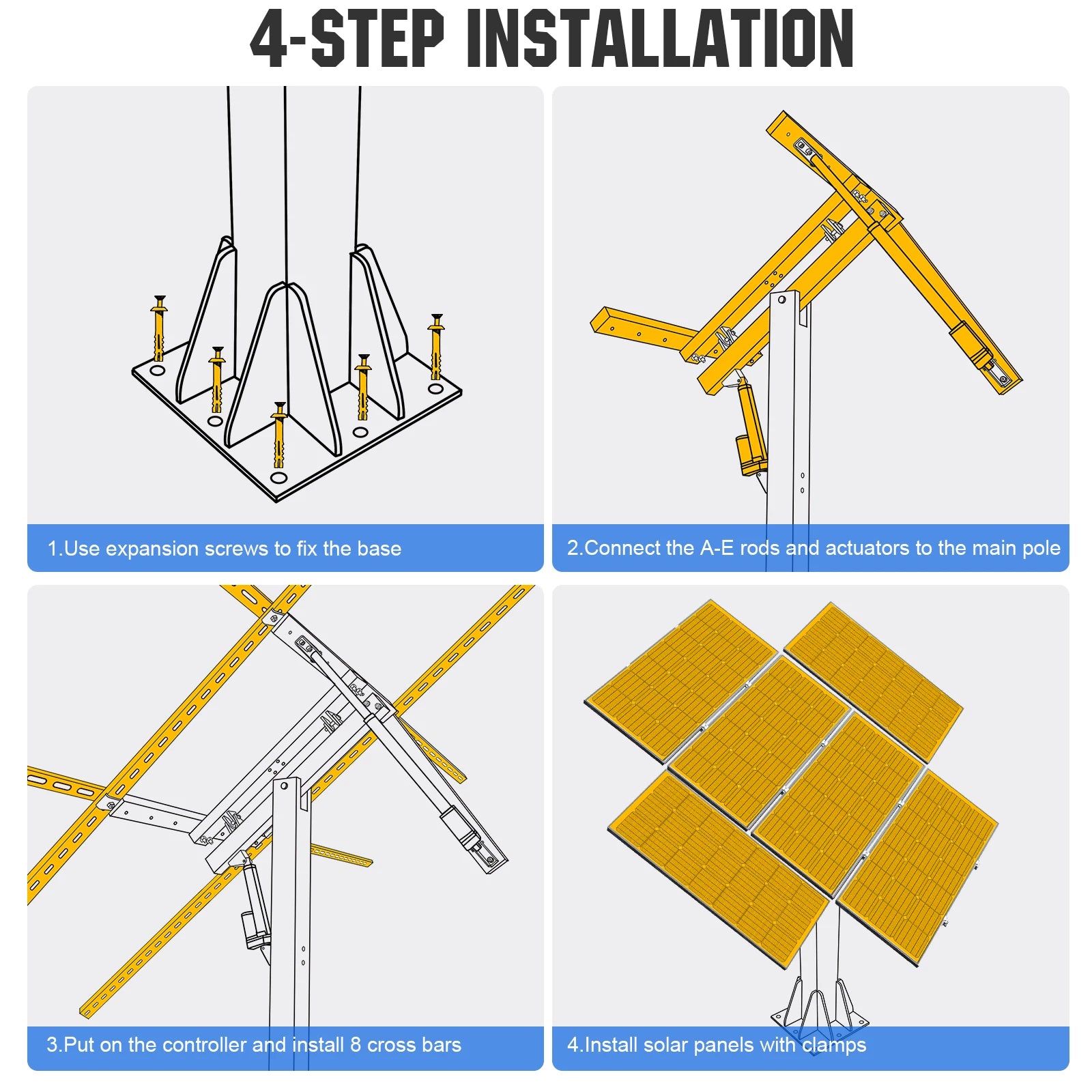

How to install?
