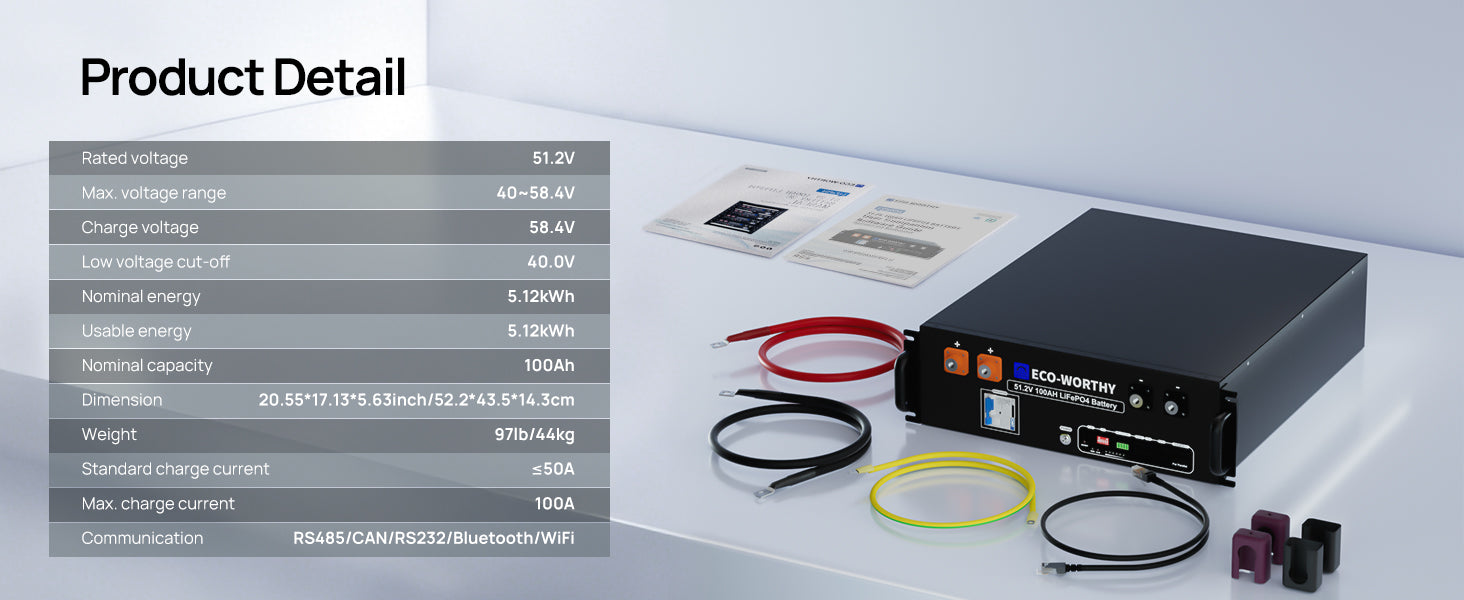

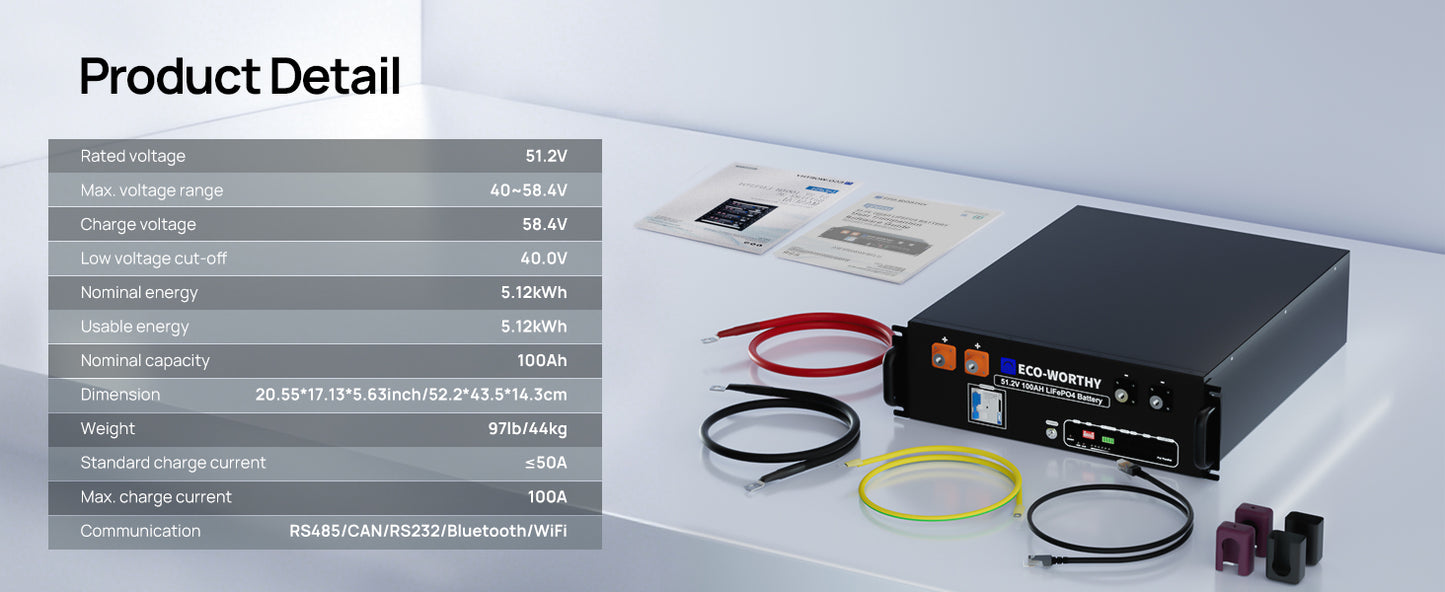

SPECIFICATIONS

Application: Home

Brand Name: ECO－WORTHY

Certification: UL

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 5120Wh

Load Power (W): 5000W

Maximum continuous charge: 100±5A

Maximum continuous discharge: 100±5A

Maximum operational voltage: 58.4V

Model Number: L02NK10KUSL4800CNZH3U6U-1

Nominal Voltage: 51.2V

Output Voltage (V): 48V

Power Source: Solar

Rated Capacity: 100Ah

Solar Power (W): 5000W

Specification: Normal

Standard charge: 25±1A

System Configuration: Off-Grid

Temperature Protection: Yes

Type: Solar Energy Systems (including batteries)

Voltage: 48 V

Work Time (h): 24h

[Real-time Battery Monitoring]

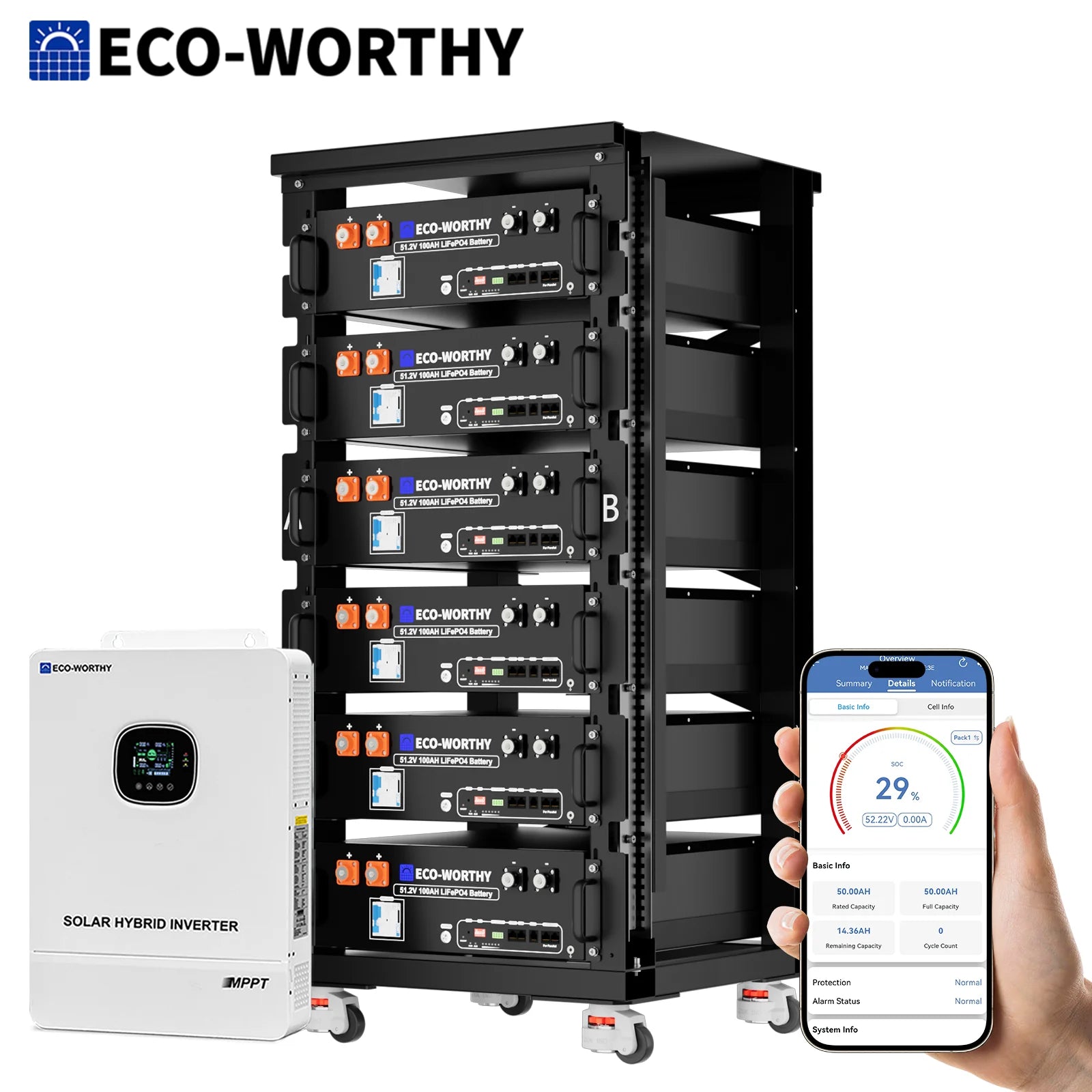

ECO-WORTHY 48V(51.2V) Server Rack Battery supports CAN/RS485 for seamless communication with popular all-in-one solar inverters. You can also easily monitor your battery’s status through the mobile app, which supports both Bluetooth and WiFi connections. Stay informed on your battery’s health and performance in real-time, all from the convenience of your smartphone.

[Space-Saving Design]

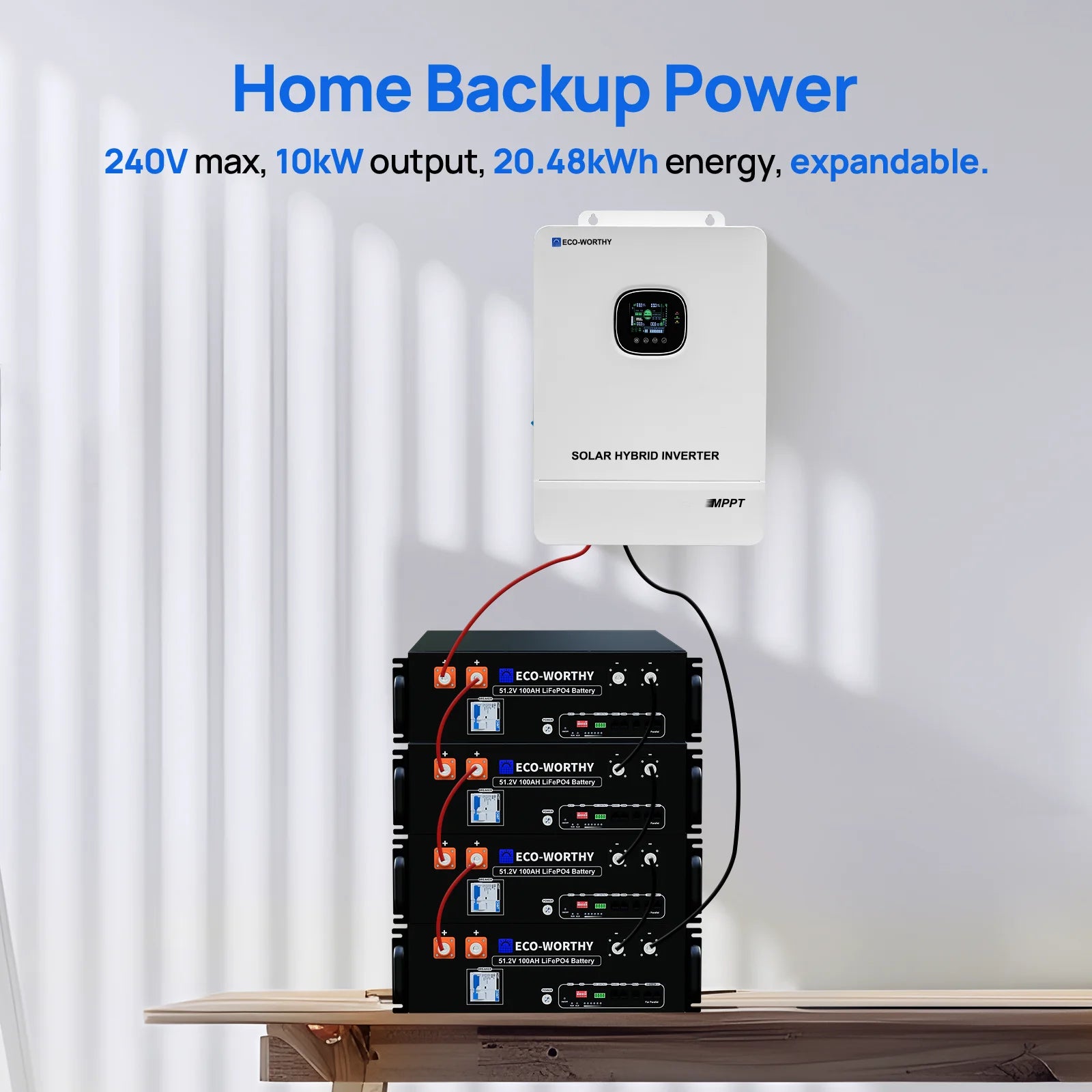

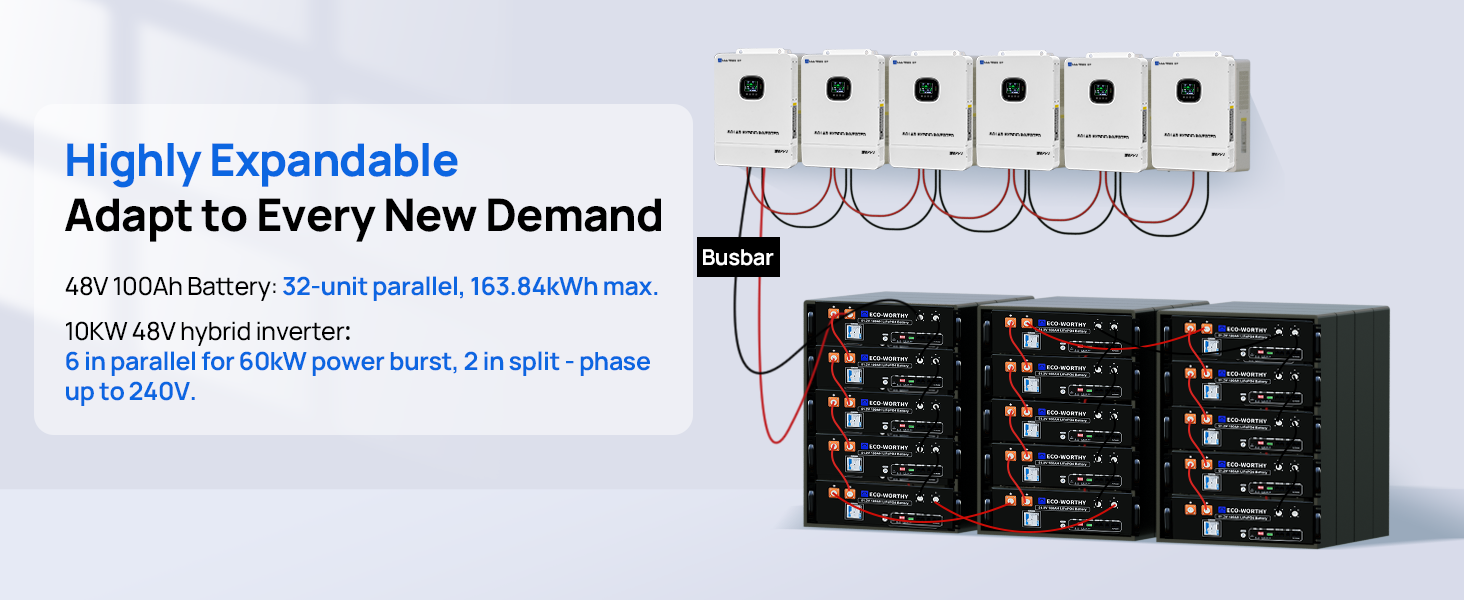

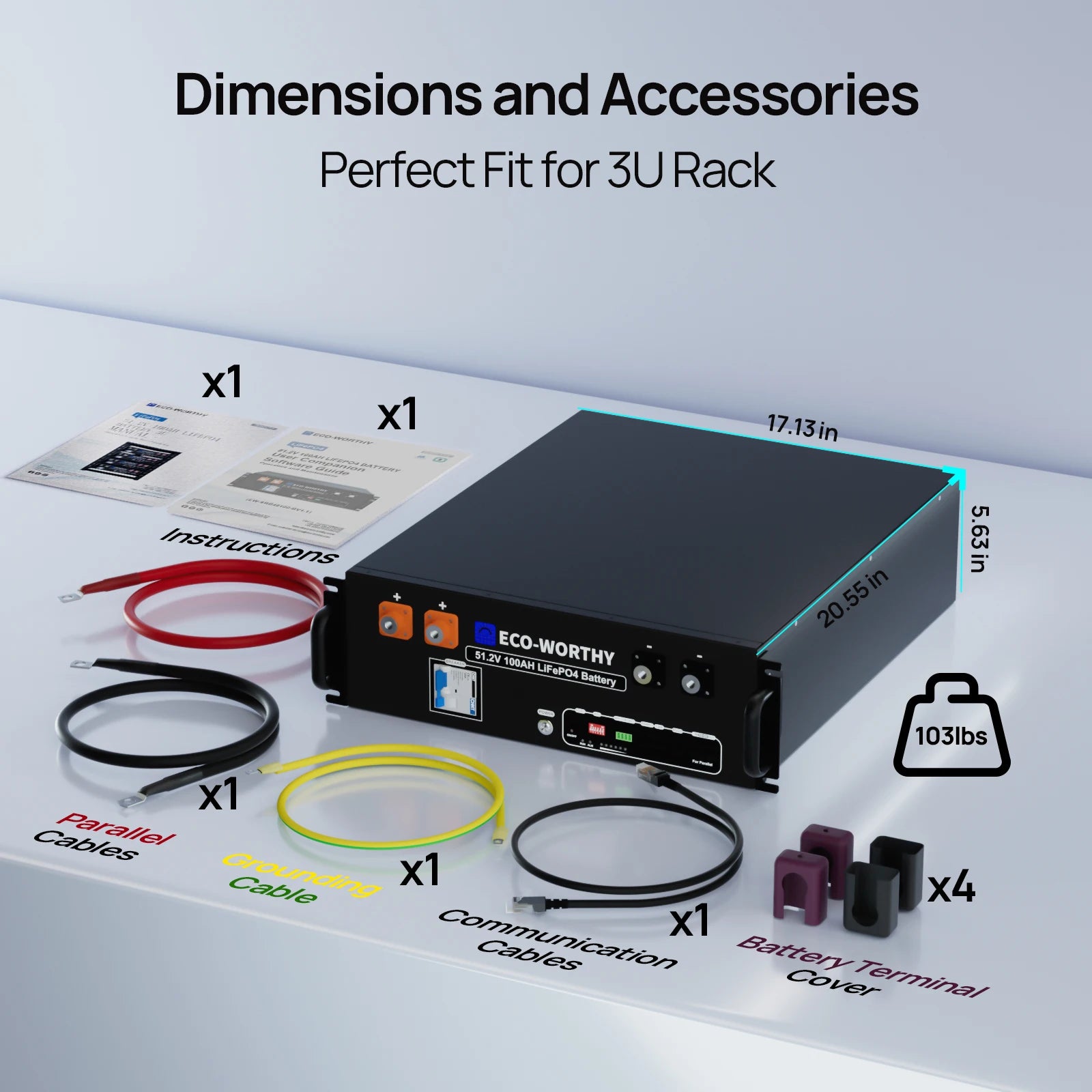

Perfectly compatible with standard 3U cabinets, this 48v 100ah lithium battery allows for vertical installation, maximizing space efficiency. Weighing only 97 pounds, it can be easily handled by one person, with the option to connect up to 15 batteries in parallel for larger setups.

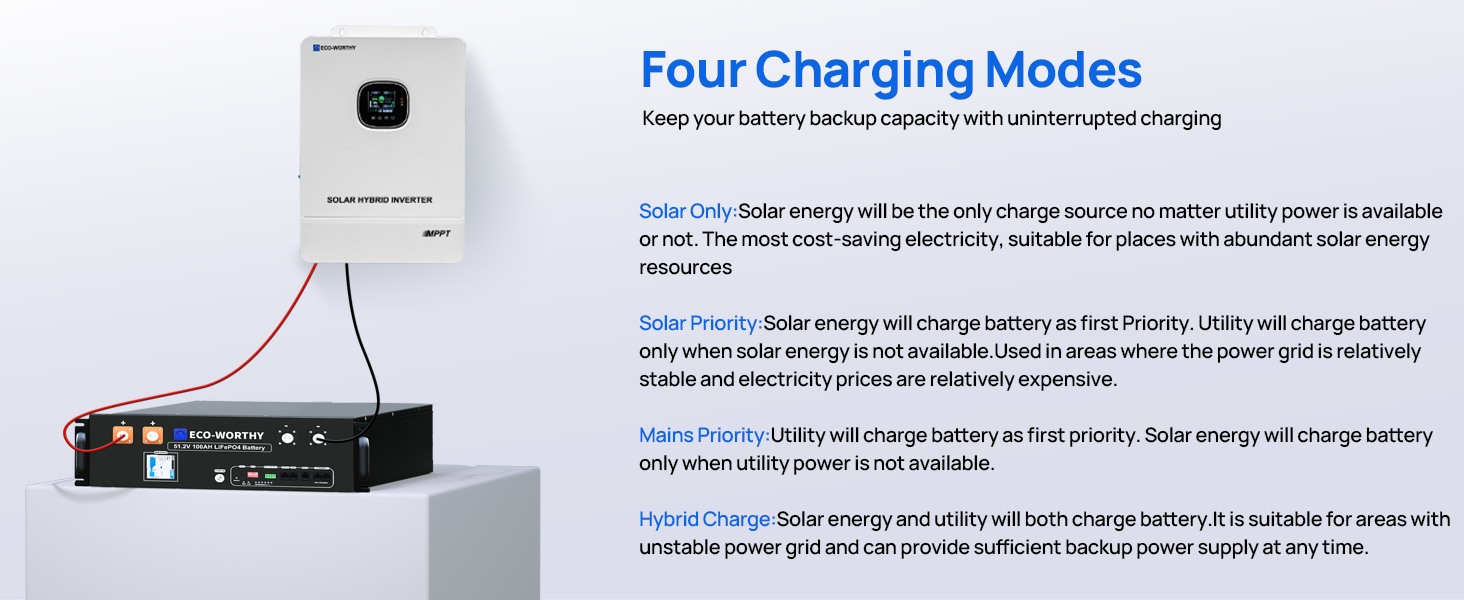

[Segmented Charing/Discharging]

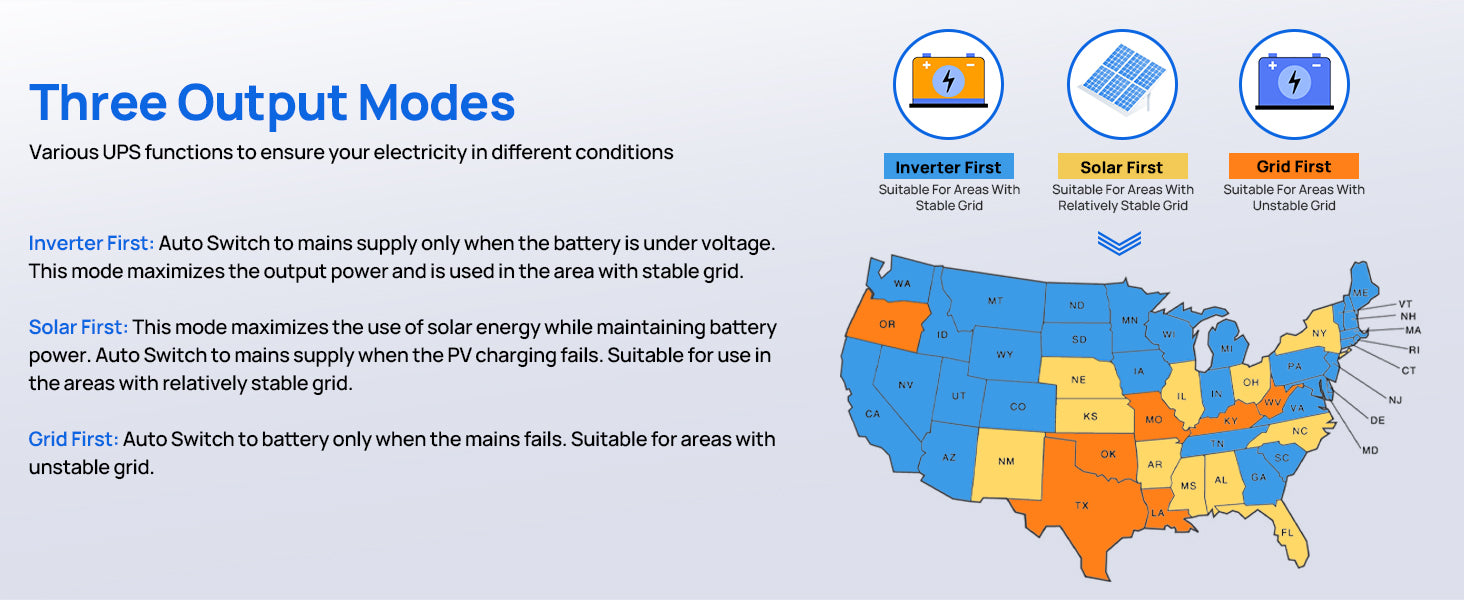

3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains.

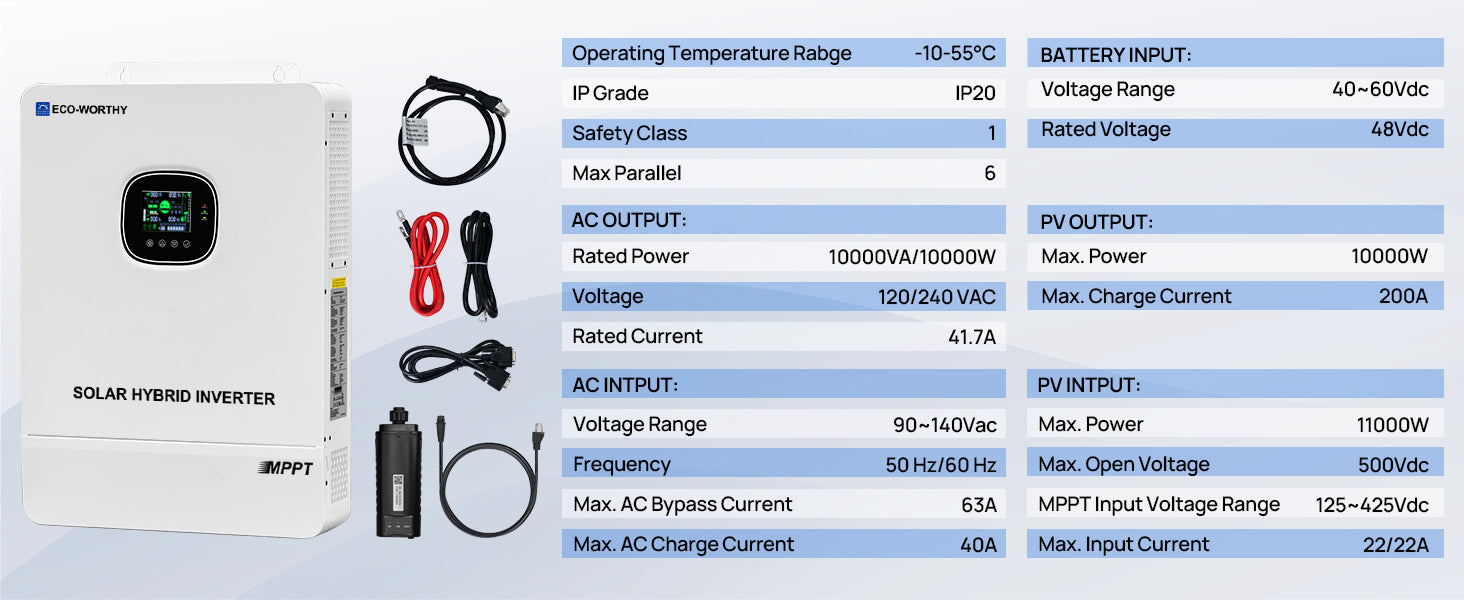

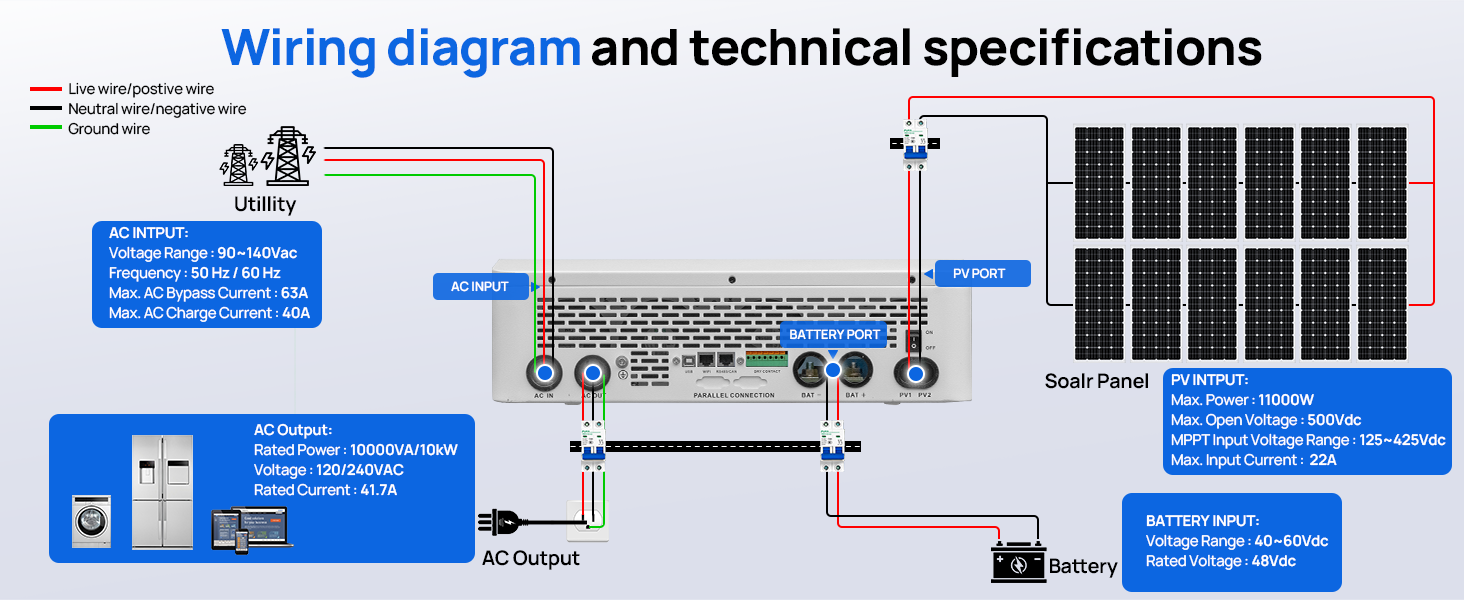

[Technical Specifications]

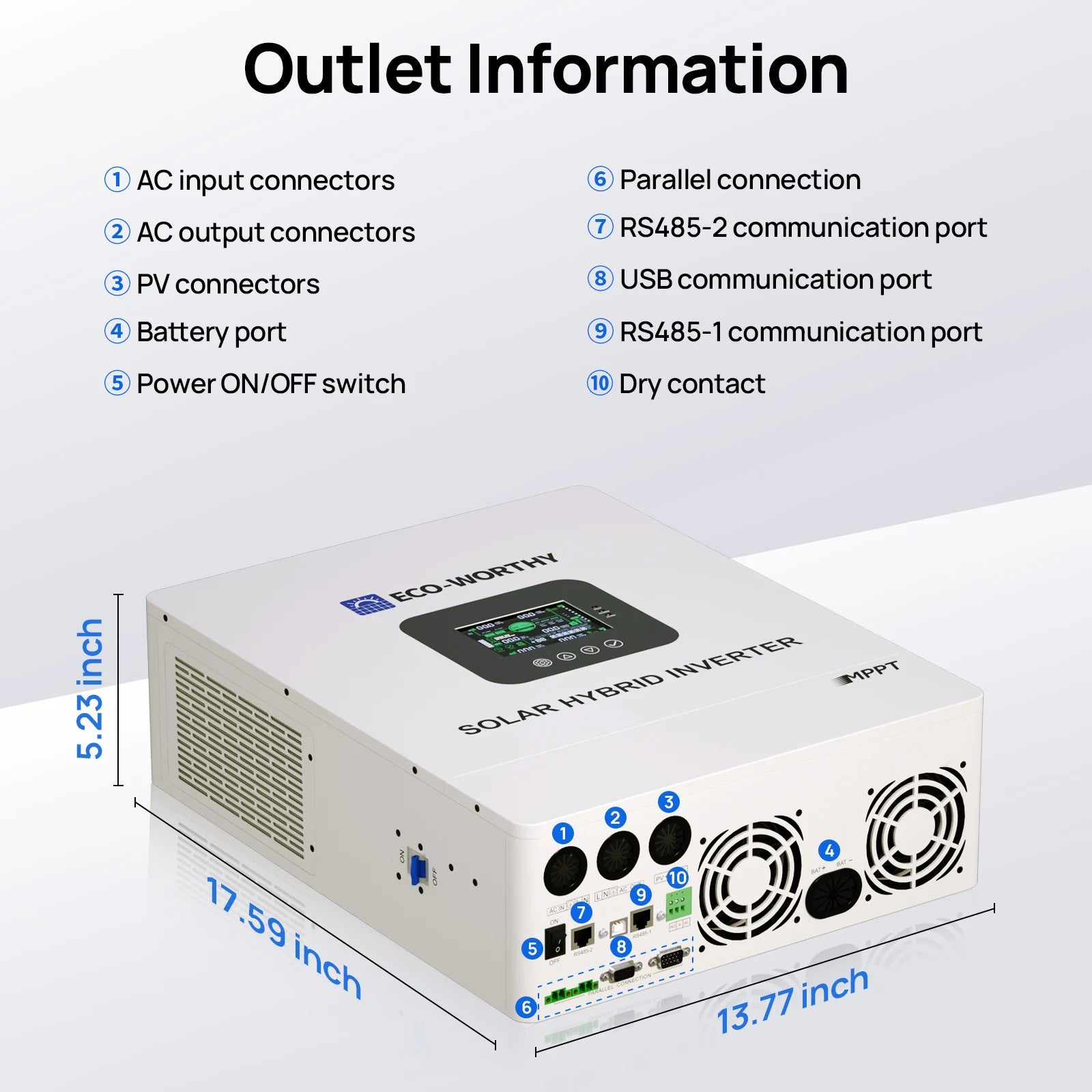

Max.PV input power:10000W, PV input voltage range: 125-425V DC, Max. MPPT Charging Current:22/22A, Rated Output Power:10000W, Max. Peak Power:20000W, Rated Output Voltage:120/240Vac（split phase/single phase)

[What You Get]

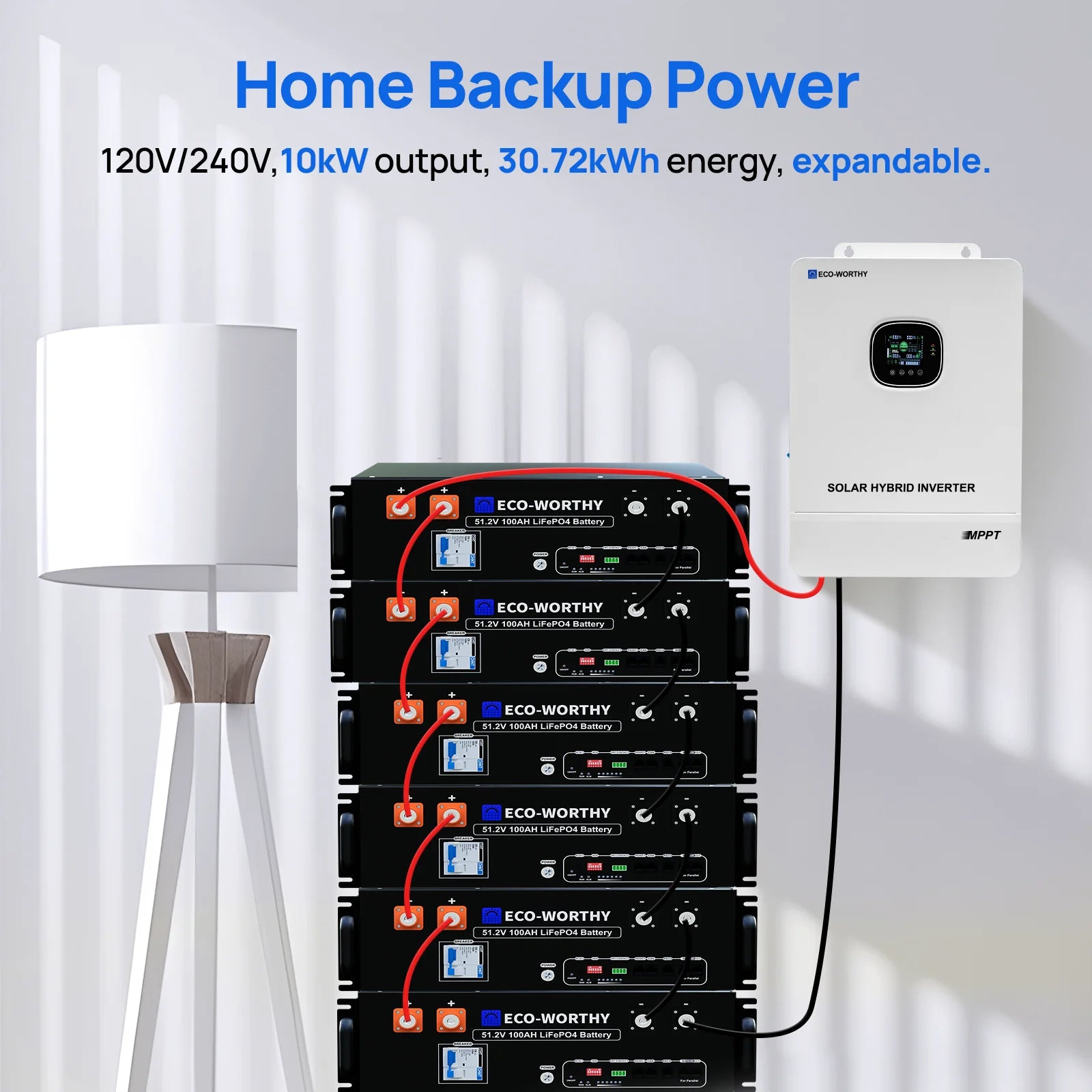

This home backup power system has multiple packages, please make sure you have received the complete system. As a professional solar system manufacturer who has been deeply engaged in solar energy field for 17 years, whenever you encounter any problems, ECO-WORTHY team will actively provide you with professional off-grid system solutions.
