SPECIFICATIONS



Brand Name: DOKIO



Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 300W

Model Number: FFSP-300M

Number of Panels: 1



Size: 196 x 95 cm/77 x37 inch

Type: Solar Panel





Dear customer, due to product upgrade,

the size and weight of the product you receive may be different.

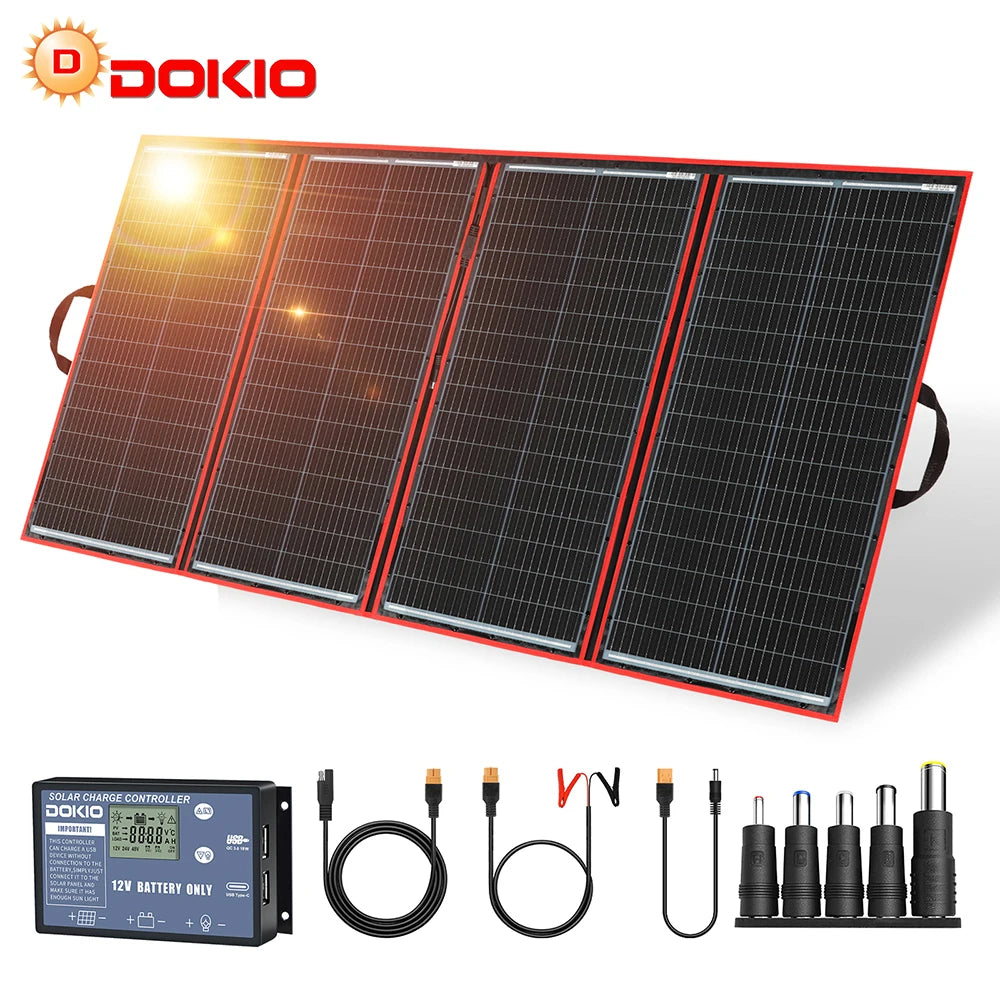

Model:FFSP-300M

Material:Monocrystalline silicon

Maximum Power(Pmax): 300W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):16.67A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):16.92A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)

Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)

Net Weight:7.1kg

Package Weight:8.2kg

Package Size:108x57x7cm

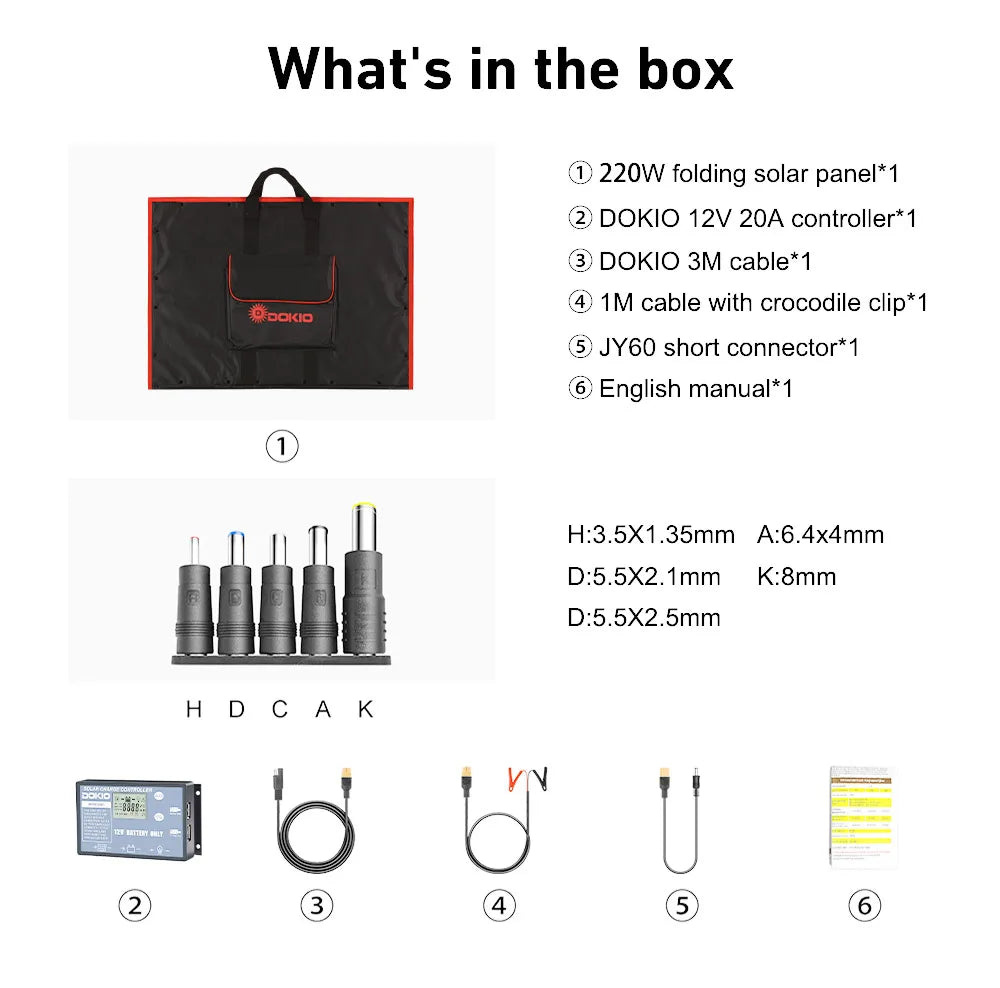

Package List:

1*300W Flexible Foldble Solar Panel

A total of 4M long cable. With alligator clips.

1*20A 12Vcontroller



(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

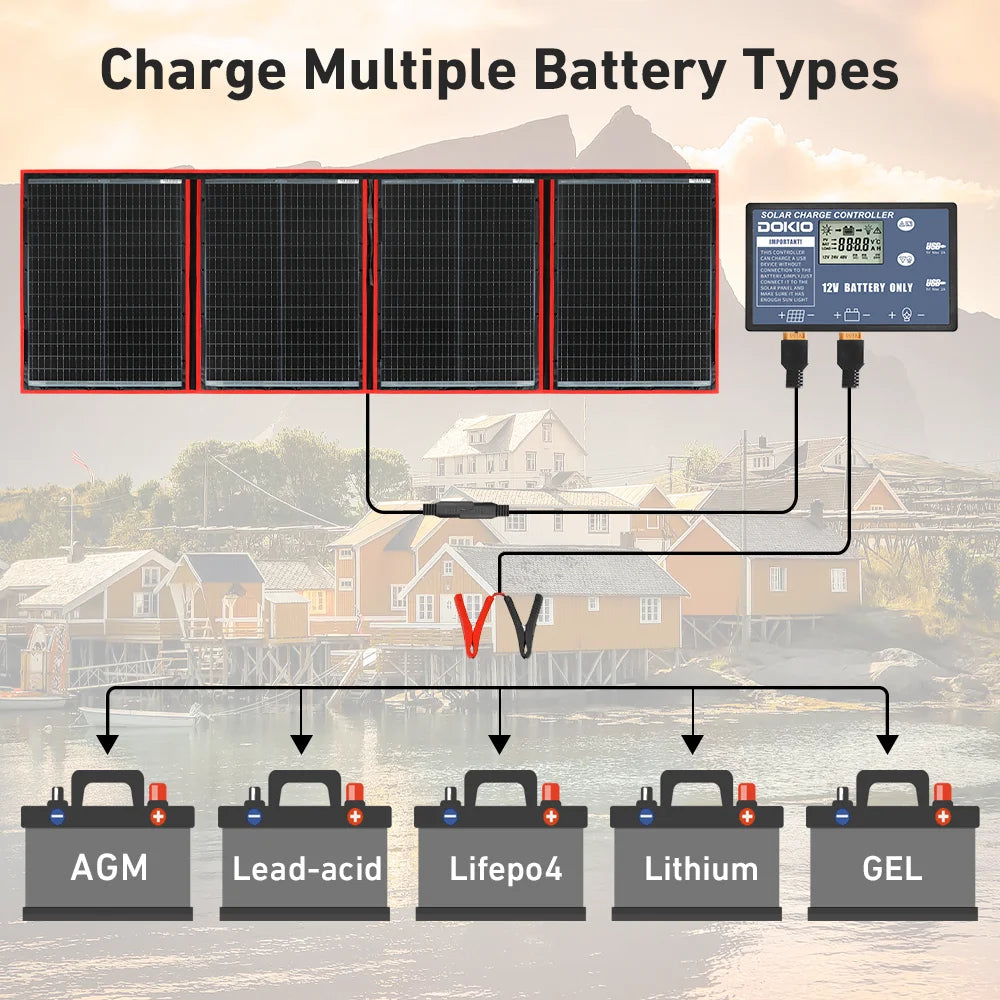

Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
